Voynich MS - Quire 19

Description

Quire 19 contains folios 99 through 102. Folios 101 and 102 are foldout folios. The gathering mark is on f102v1.

Schematic folio layout:

Folio 99

Normal folio. The folio nr. is on f99r.

f99r

>>Link to 2014 scan (Beinecke digital library)

>>Link to 2004 scan (Jason Davies Voyager)

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.
There is a hole in the upper half of the page.
Folio nr (99) in upper right corner.

Illustration(s)

Four simple containers and five rows of herb fragments consisting primarily of roots (27 in total).

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f99r, row 1

68

69

70

71

72

73

74

75

76


f99r, row 2

77

78

79


f99r, row 3

80

81

82

83

84

85

86


f99r, row 4

87

88

89

90

91

92

93


f99r, row 5

94


Text

There are 18 lines of text in four paragraphs. Each paragraph seems to belong to one of the containers and is written below the rows of plant fragments.

There are 33 labels in total.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f99r

Other information

TBW

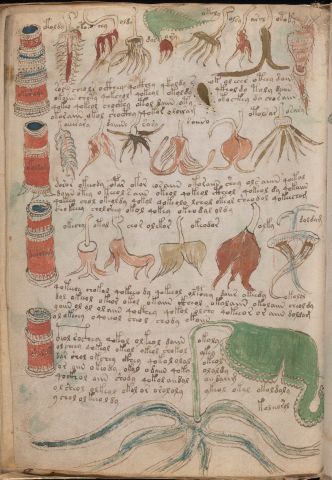

  f99v

>>Link to 2014 scan (Beinecke digital library)

>>Link to 2004 scan (Jason Davies Voyager)

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.
There is a hole in the upper half of the page.

Illustration(s)

Four simple containers and four rows of herb fragments consisting primarily of roots (20 in total).

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f99v, row 1

95

96

97

98

99

100

101

102


f99v, row 2

103

104

105

106

107

108


f99v, row 3

109

110

111

112

113


f99v, row 4

114


Text

There are 19 lines of text in Four paragraphs. The fourth immediately follows the third anad is longest. Its lines are interrupted by the largest plant fragment at the bottom of the page.

There are 25 labels in total.

Currier language: A
RZ language: Ae+ (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f99v

Other information

TBW

Folio 100

Normal folio. The folio nr. is on f100r.

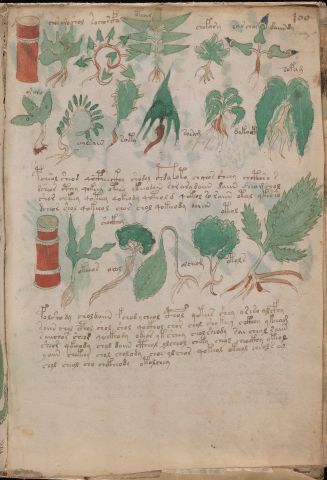

f100r

>>Link to 2014 scan (Beinecke digital library)

>>Link to 2004 scan (Jason Davies Voyager)

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.
Folio nr (100) in upper right corner.

Illustration(s)

Two simple containers and three rows of herb fragments consisting primarily of leaves with roots (16 in total).

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f100r, row 1

115

116

117

118

119


f100r, row 2

120

121

122

123

124

125


f100r, row 3

126

127

128

129

130


Text

There are 10 lines of text in two paragraphs, the first below the top two rows of plant parts and the second below the third row.

There are 17 labels in total.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f100r

Other information

TBW

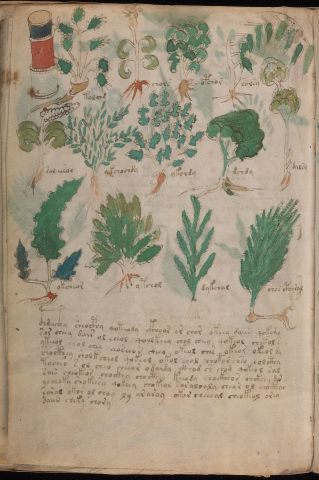

  f100v

>>Link to 2014 scan (Beinecke digital library), showing pages 100v and 101r from left to right.

>>Link to 2004 scan (Jason Davies Voyager), showing pages 100v and 101r from left to right.

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.

Illustration(s)

One simple container and three rows of herb fragments consisting primarily of leaves with roots, and some flowers (13 in total).

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f100v, row 1

131

132

133

134


f100v, row 2

135

136

137

138

139


f100v, row 3

140

141

142

143


Text

There are 9 lines of text in a single paragraph at the bottom of the page.

There are 13 labels in total.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f100v

Other information

TBW

Folio 101

Folio 101 is an unusual foldout folio. Because of the fold, in the past this foldout has been split into two panels, but both recto and verso sides of the folio have a single design with text running over the fold. It will therefore not be treated as a foldout. f101r comprises the old f101r1 and f101r2, and f101v comprises the old f101v2 and f101v1. The verso side has not been photographed as a whole, but in two parts. The folio nr. is on f101v (old: f101v2).

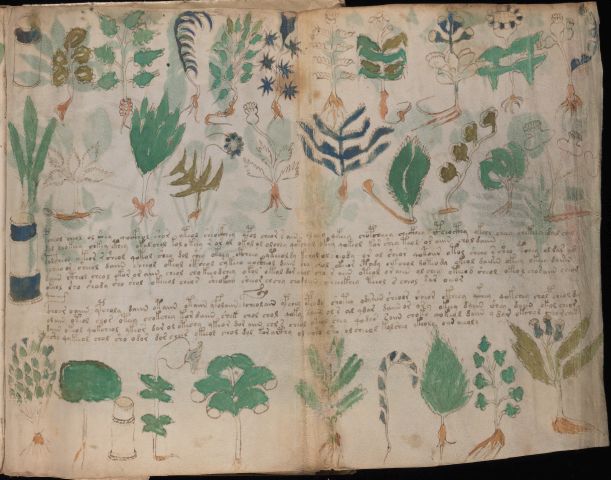

f101r

>>Link to 2014 scan (Beinecke digital library), showing pages 100v and 101r from left to right.

>>Link to 2004 scan (Jason Davies Voyager), showing pages 100v and 101r from left to right.

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.

Illustration(s)

Three simple containers and three rows of herb fragments consisting primarily of leaves with roots, and an occasional flower (29 in total). Exceptionally, the container of the third row is not in the left margin but among the herb fragments. The containers have not been painted to completion.

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference. The numbering is affected by the original assumption that the folio should be seen as two independent panels:

f101r, row 1

144

145

146

147

148

158

159

160

161

162


f101r, row 2

149

150

151

152

153

163

164

165

166

167


f101r, row 3

154

155

156

157

168

169

170

171

172


Text

There are 10 lines of text in two paragraphs, both between the second and third row of plant fragments. The text crosses the vertical fold and spans the total width of the foldout folio.

Exceptionally, there are no labels on this page, as if they have been forgotton, or because the folio was never completed.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f101r. (This is labeled as f101r1, but the part of f101r2 is empty.)

Other information

TBW

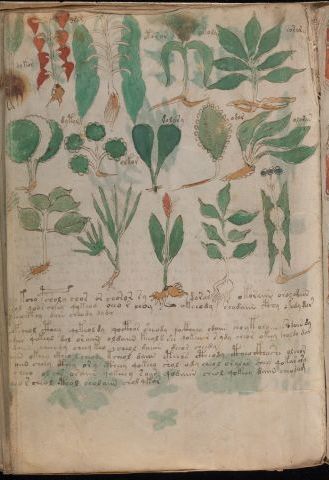

  f101v

>>Link to 2014 scan (Beinecke digital library) (left part)
>>Link to 2014 scan (Beinecke digital library) (right part together with pages 102r1 and 102r2.)

>>Link to 2004 scan (Jason Davies Voyager) (left part)
>>Link to 2004 scan (Jason Davies Voyager) (right part together with pages 102r1 and 102r2.)

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here. Foio nr (101) in upper right corner.

Illustration(s)

Three simple containers and three rows of herb fragments consisting primarily of leaves with roots, and an occasional flower (28 in total).

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference. The numbering is affected by the original assumption that the folio should be seen as two independent panels:

f101v, row 1

173

174

175

176

186

187

188

189

190


f101v, row 2

177

178

179

180

191

192

193

194

195


f101v, row 3

181

182

183

184

185

196

197

198

199

200


Text

There are 10 lines of text in three paragraphs, all at the bottom of the page. The text crosses the vertical fold between f101v2 and f101v1 and spans the total width of the foldout folio. The last line has been centred, also in the middle of the pair of pages. The fold, which is rather damaged, makes reading of part of the text very difficult.

There are 18 labels in total.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f101v. (This is labeled as f101v2, but the part of f101v1 is empty).

Other information

TBW

Folio 102

Foldout folio. The folio nr. is on f102v2.

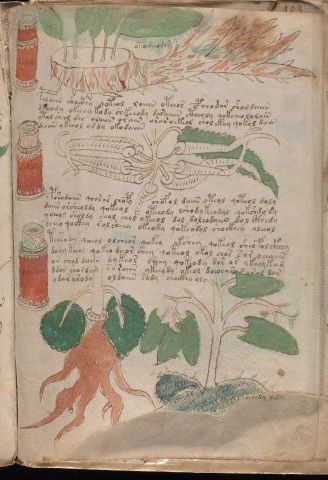

f102r1

>>Link to 2014 scan (Beinecke digital library), showing pages 101v1, 102r1 and 102r2 from left to right.

>>Link to 2004 scan (Jason Davies Voyager), showing pages 101v1, 102r1 and 102r2 from left to right.

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.
A significant piece of parchment seems to have been torn off from the bottom of the page.

Illustration(s)

Three simple containers and four relatively large herb fragments consisting of roots and leaves.

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f102r1, row 1

201


f102r1, row 2

202


f102r1, row 3

203
*
204
*

Text

There are 13 lines of text in three paragraphs. The first is below the top plant and the other two between the middle and bottom drawings.

There are 4 labels in total.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f102r1

Other information

Item 203 is a copy of part of the herb on f37v.
The root of item 204 looks the same as that of the plant on f1v and the leaves are also similar.

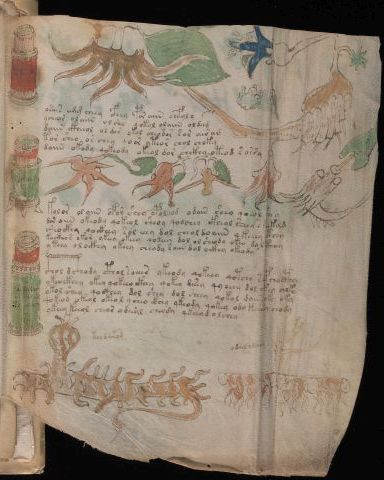

  f102r2

>>Link to 2014 scan (Beinecke digital library), showing pages 101v1, 102r1 and 102r2 from left to right.

>>Link to 2004 scan (Jason Davies Voyager), showing pages 101v1, 102r1 and 102r2 from left to right.

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here
The page is wider than normal, and has an additional fold.
A significant piece of parchment seems to have been torn off from the bottom of the page.

Illustration(s)

Three simple containers and three rows of medium-sized herb fragments consisting of roots and leaves (9 in total).

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f102r2, row 1

205

206


f102r2, row 2

207

208

209

210

211


f102r2, row 3

212
*
213
*

Text

There are 15 lines of text in three paragraphs. The first is below the top line of plant fragments, and the other two together below the second row.

There are 5 labels in total.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f102r2

Other information

Item 212 is a copy of part of the herb on f18v.
Item 213 is a copy of part of the herb on f23r.

  f102v2

>>Link to 2014 scan (Beinecke digital library)

>>Link to 2004 scan (Jason Davies Voyager)

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.
The page is wider than normal, and has an additional fold.
A significant piece of parchment seems to have been torn off from the bottom of the page.
Folio nr (102) in upper right corner.

Illustration(s)

Two ornate containers and three rows of herb fragments consisting of leaves (first two rows) or roots and leaves (19 in total). One of the items in the first row is a small 'block' painted blue and yellow.

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f102v2, row 1

214

215

216

217

218

219

220


f102v2, row 2

221

222

223

224

225

226

227


f102v2, row 3

229

230

231

232

233


Text

There are 17 lines of text in two paragraphs. The first is below the top two rows of plant parts, and the second, long paragraph is at the bottom of the page.

There are 22 labels in total.

Currier language: A
RZ language: Ae (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f102v2

Other information

Th.Petersen made a mistake in the numbering, and nr. 228 does not exist (has been skipped).

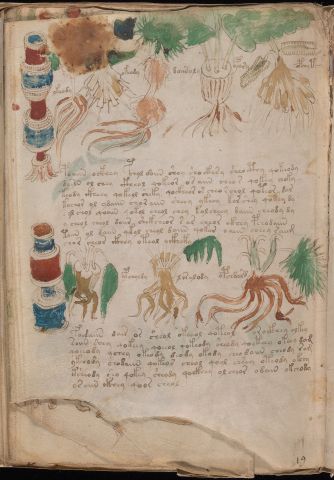

  f102v1

>>Link to 2014 scan (Beinecke digital library)

>>Link to 2004 scan (Jason Davies Voyager)

General description

This is a so-called pharmaceutical page. For general information about pharmaceutical pages see here.
A significant piece of parchment seems to have been torn off from the bottom of the page.
Quire number 19 in the bottom right corner.

Illustration(s)

Two ornate containers and two rows of herb fragments consisting of roots and leaves (8 in total).

The fragments of herbs, plants and/or roots have been numbered for (cross-)reference:

f102v1, row 1

234

235

236

237

238


f102v1, row 2

239

240

241


Text

There are 14 lines of text in two paragraphs. The first is below the top row of plant parts and the second below the second row, at the bottom of the page.

There are 10 labels in total.

Currier language: A
RZ language: Ae+ (page) / Ae (folio) / Ae (bifolio)
LFD hand: 1

Browse interlinear transliteration of f102v1

Other information

TBW
